IP POWER / IP Smart PDU

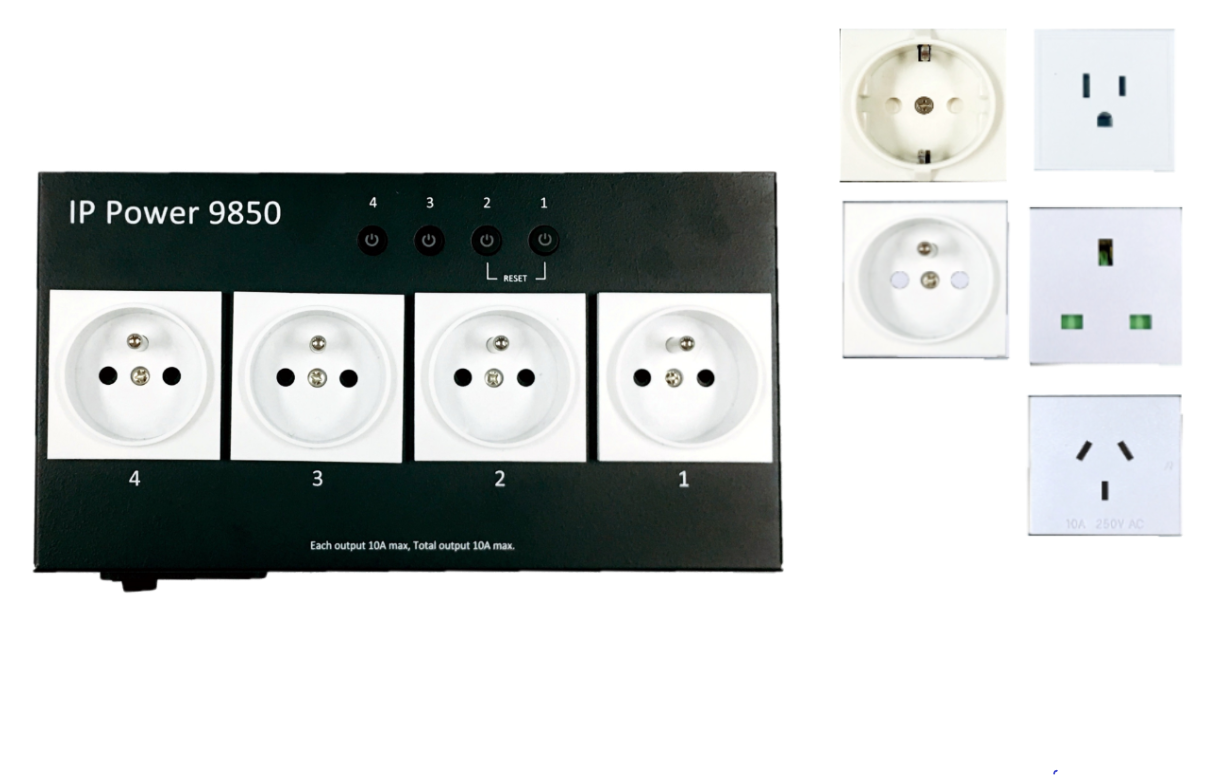

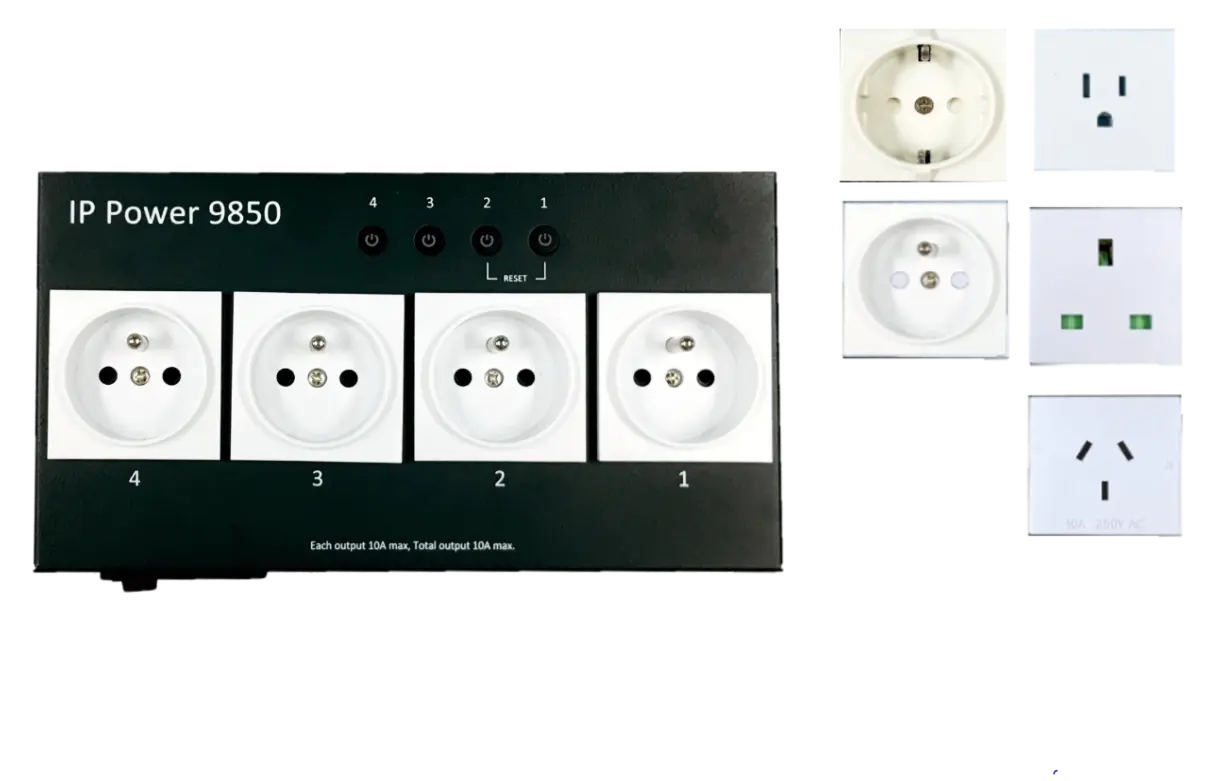

9850

  • 4x Country type outlet
  • AU,FR,GE,USA,UK.. 10A
  • 100~240VAC C14in, max 15A
  • (LxWxH) 200x140x50 mm
  • 4x power button
  • Latched Relay (Green)
  • Surge suppressor circuit
  • Ethernet port
  • Timer inside

  • https/http webserver,CGI
  • ipv4/ipv6/mDNS
  • MQTT,Telnet,Modbus/tcp
  • SNMPv1v2v3,VPN Client

  • Opt Model wireless
  • Opt Model EAPOL(IEEE802.1x)

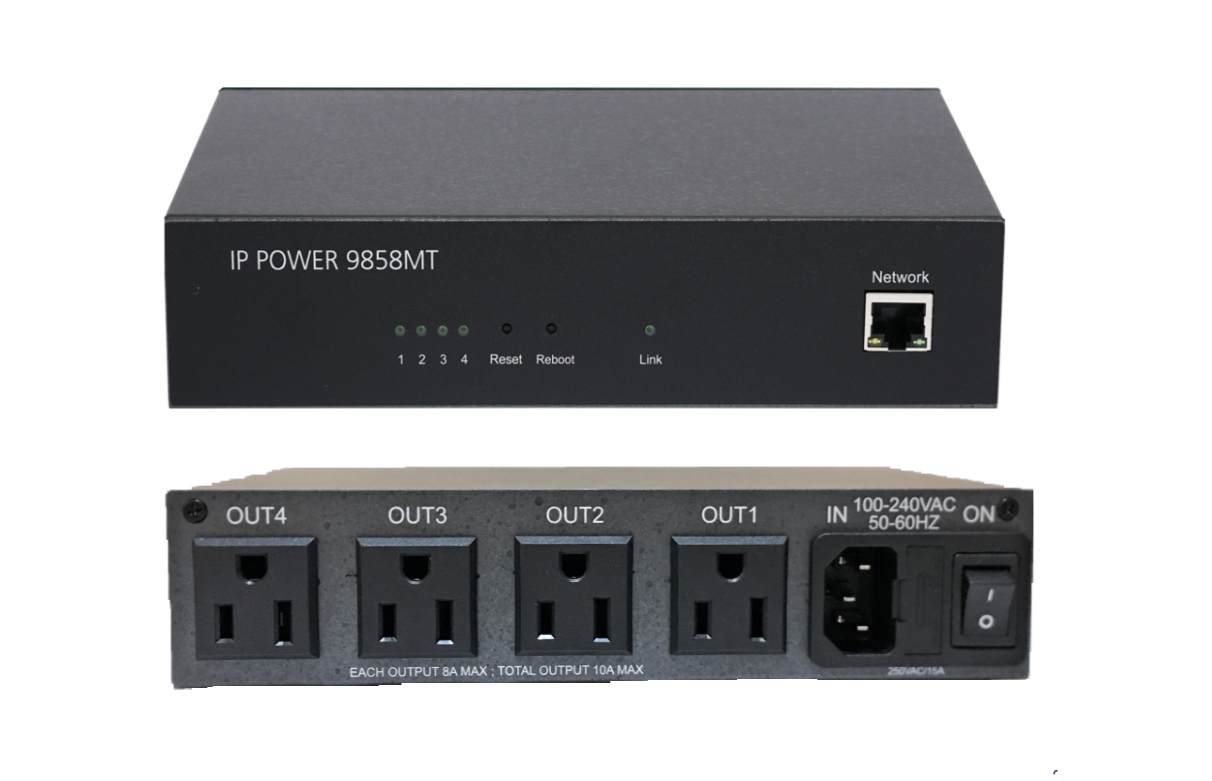

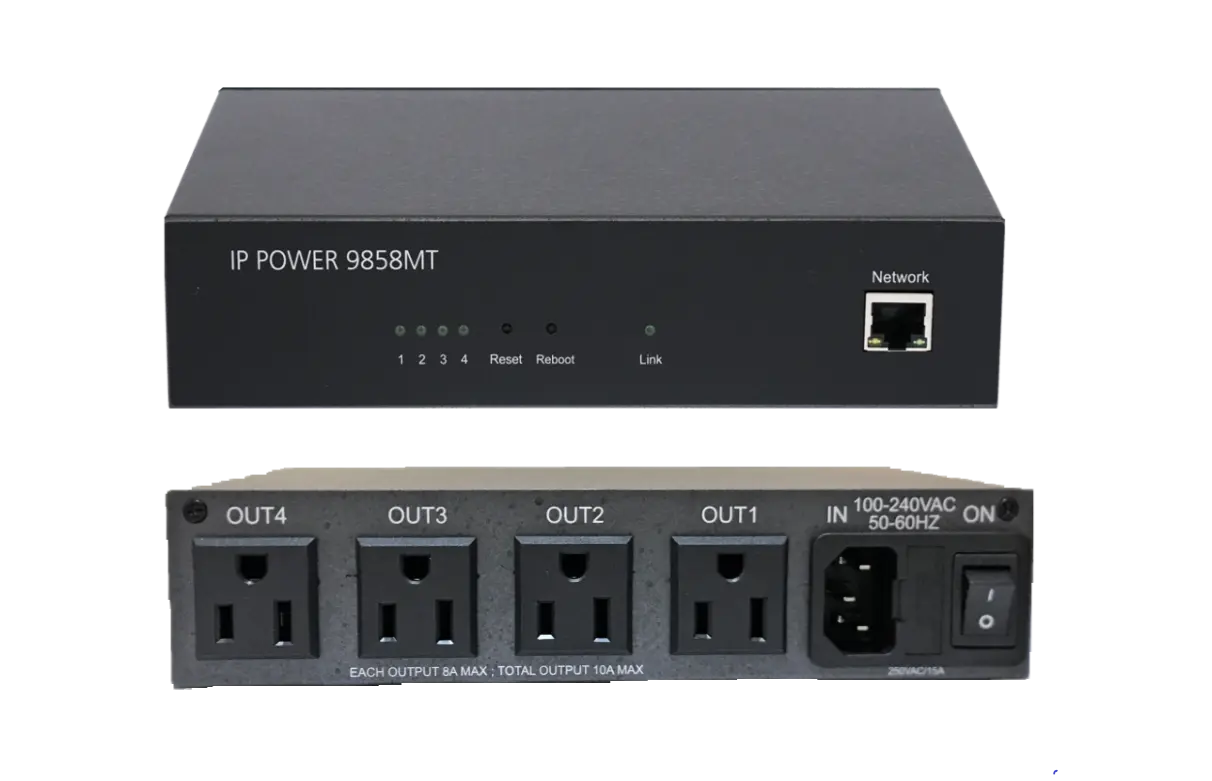

9858MT

  • 4x C13/NEMA5 outlet,10A
  • 100~240VAC C14 in,max 15A
  • (LxWxH)195x116x45mm
  • 1x Ethernet RJ45
  • Surge suppressor circuit

  • https/http webserver,CGI
  • ipv4/ipv6/mDNS
  • MQTT,Telnet,Modbus/tcp
  • SNMPv1v2v3,VPN Client

  • Opt Model wireless
  • Opt Model EAPOL(IEEE802.1x)

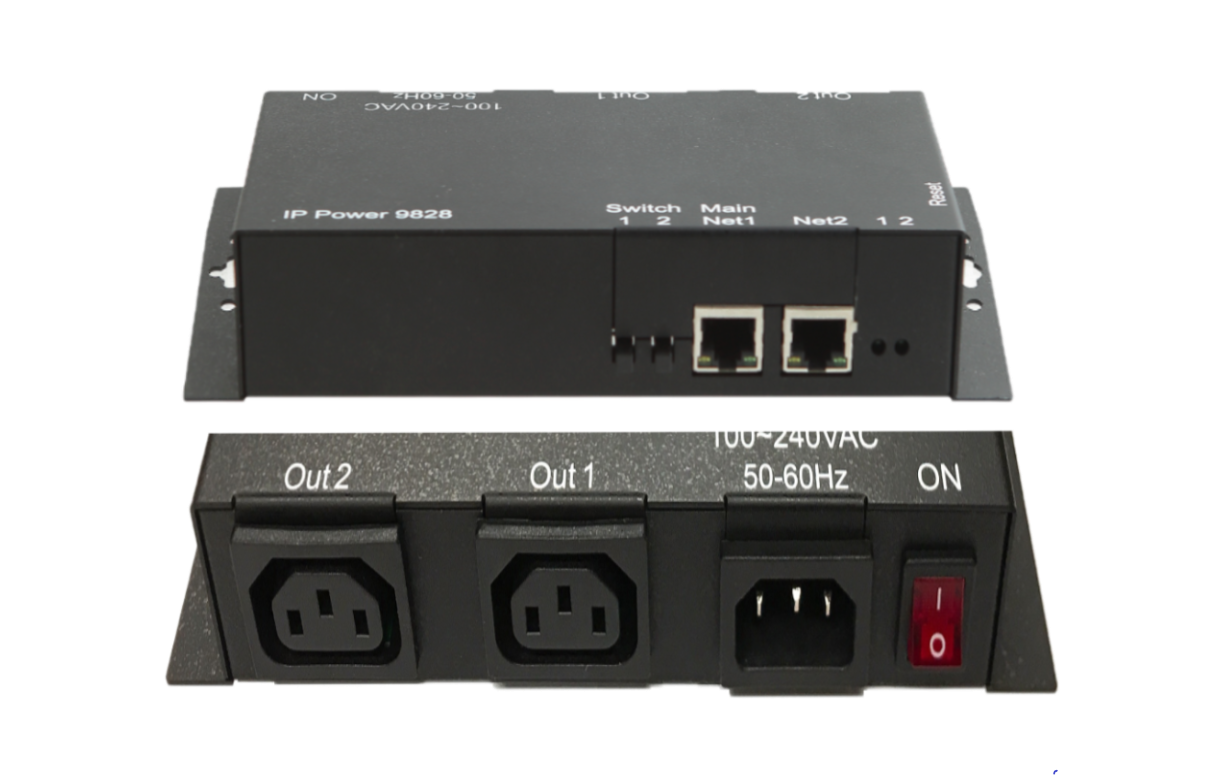

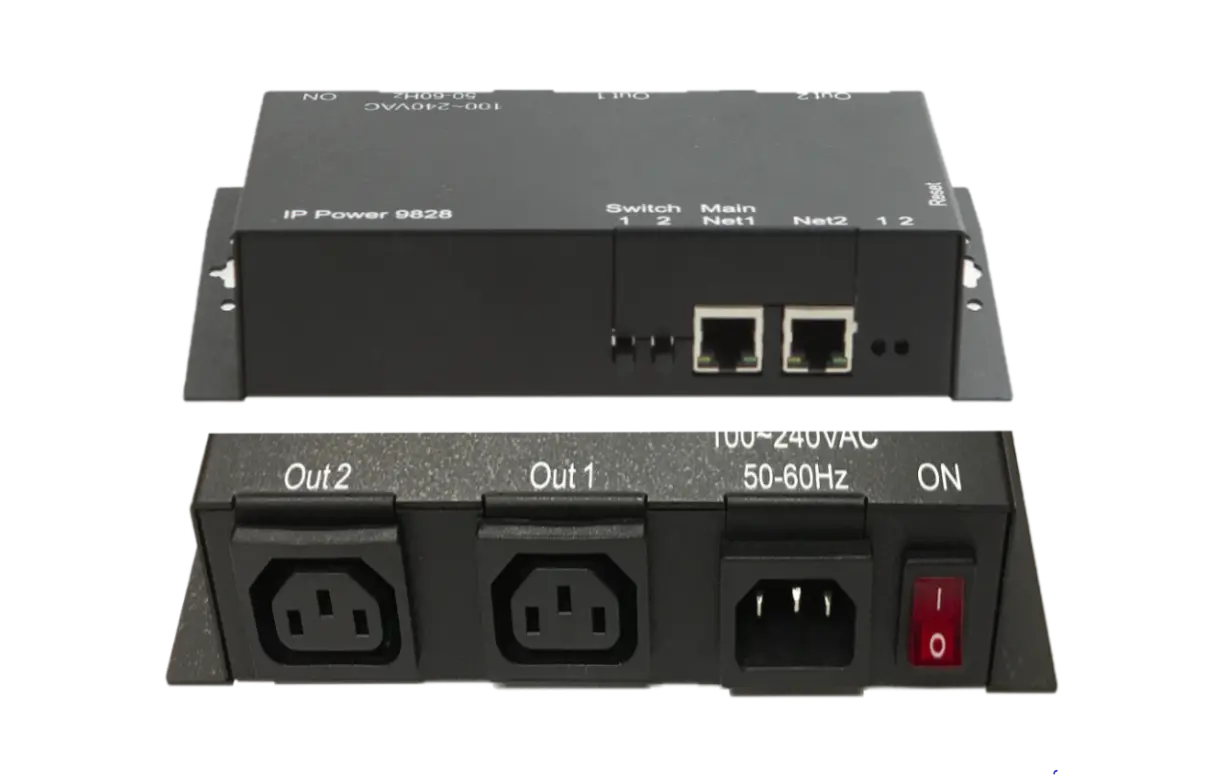

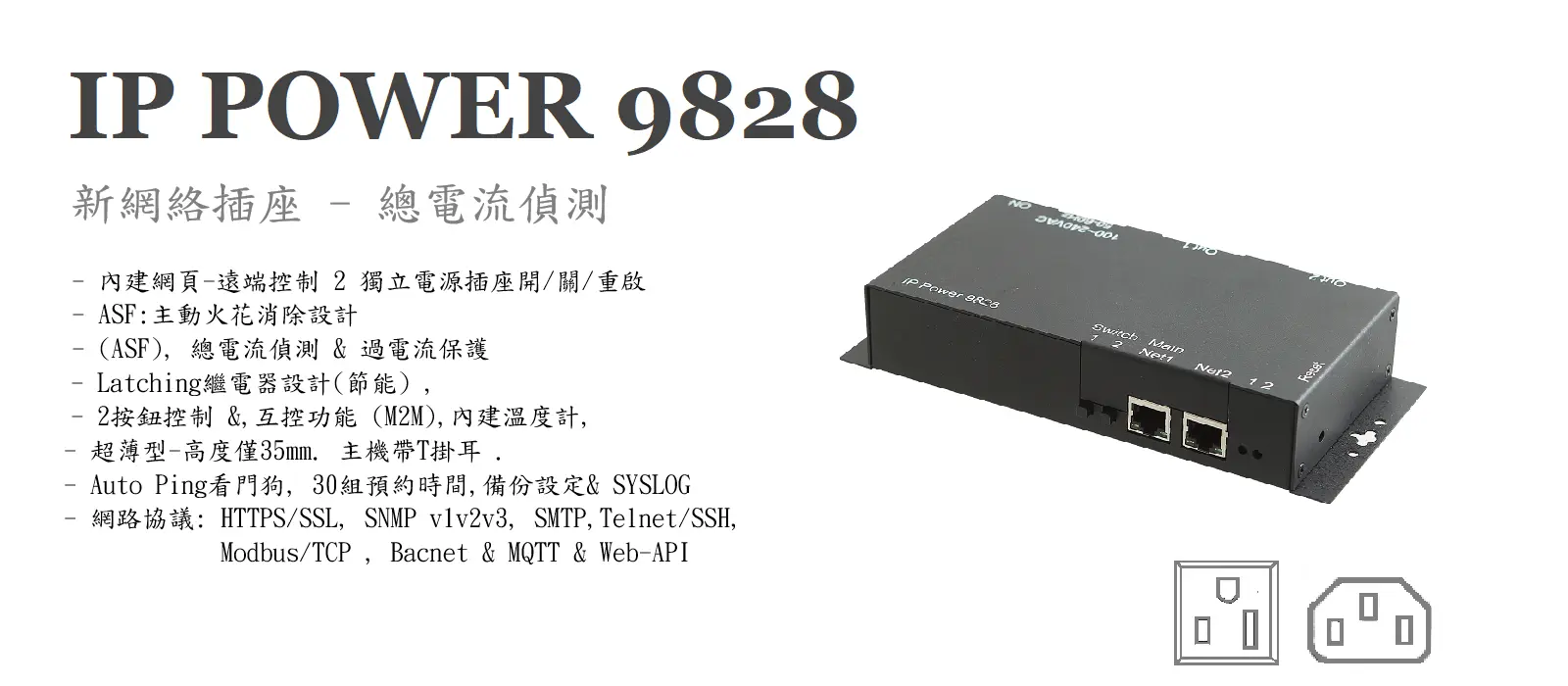

9828-P

  • 2x C13 outlet, 10A
  • 100~240VAC C14 in,max 15A
  • (LxWxH slim) 195x88x35mm
  • Latched Relay(Green)
  • 2x Ethernet RJ45
  • 2x programmable button
  • Active surge filter
  • Timer inside
  • 1xAmmeter

  • https/http webserver,CGI
  • ipv4/ipv6/mDNS
  • MQTT,Telnet,Modbus/tcp
  • SNMPv1v2v3,VPN Client

  • Opt Model wireless
  • Opt Model EAPOL(IEEE802.1x)

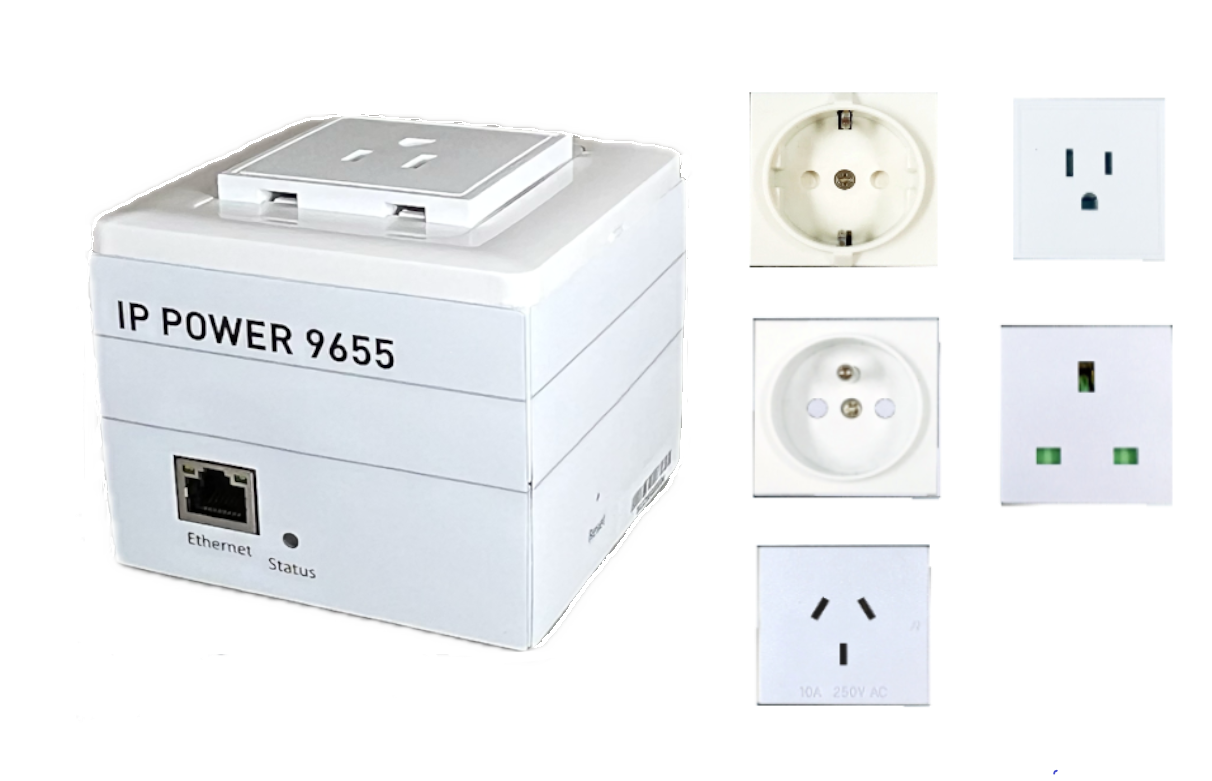

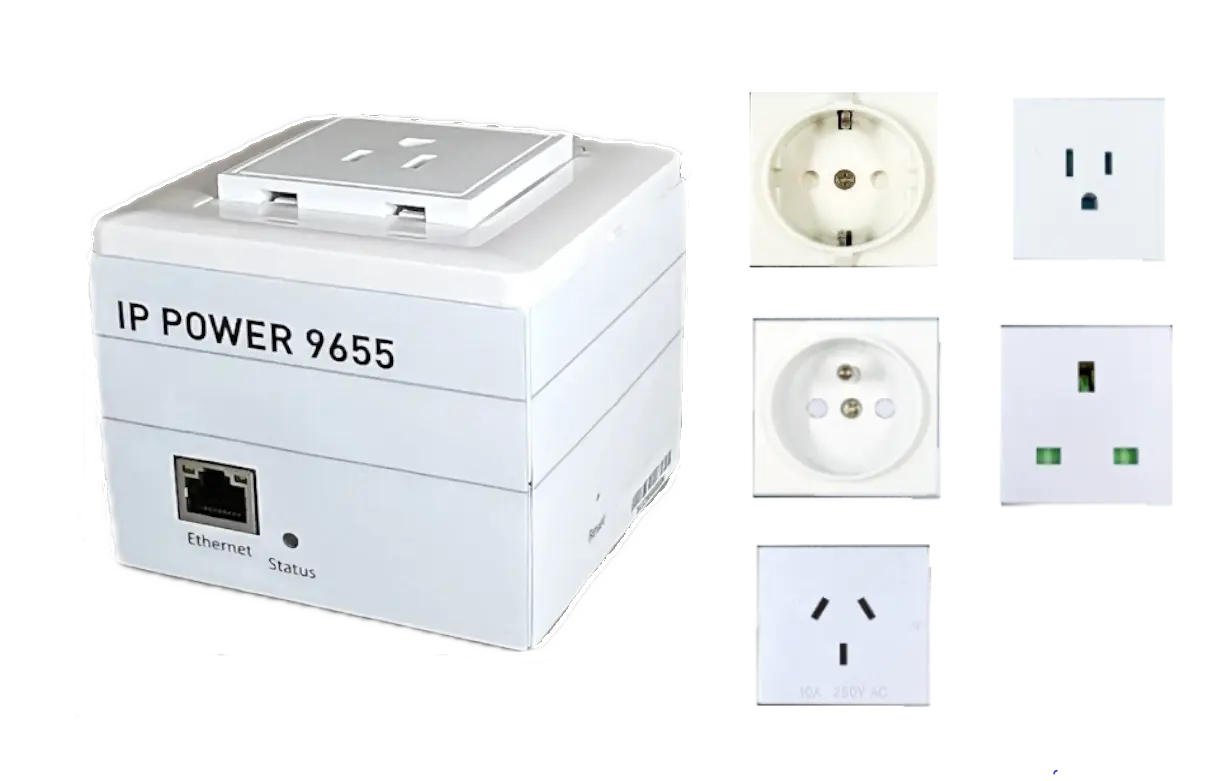

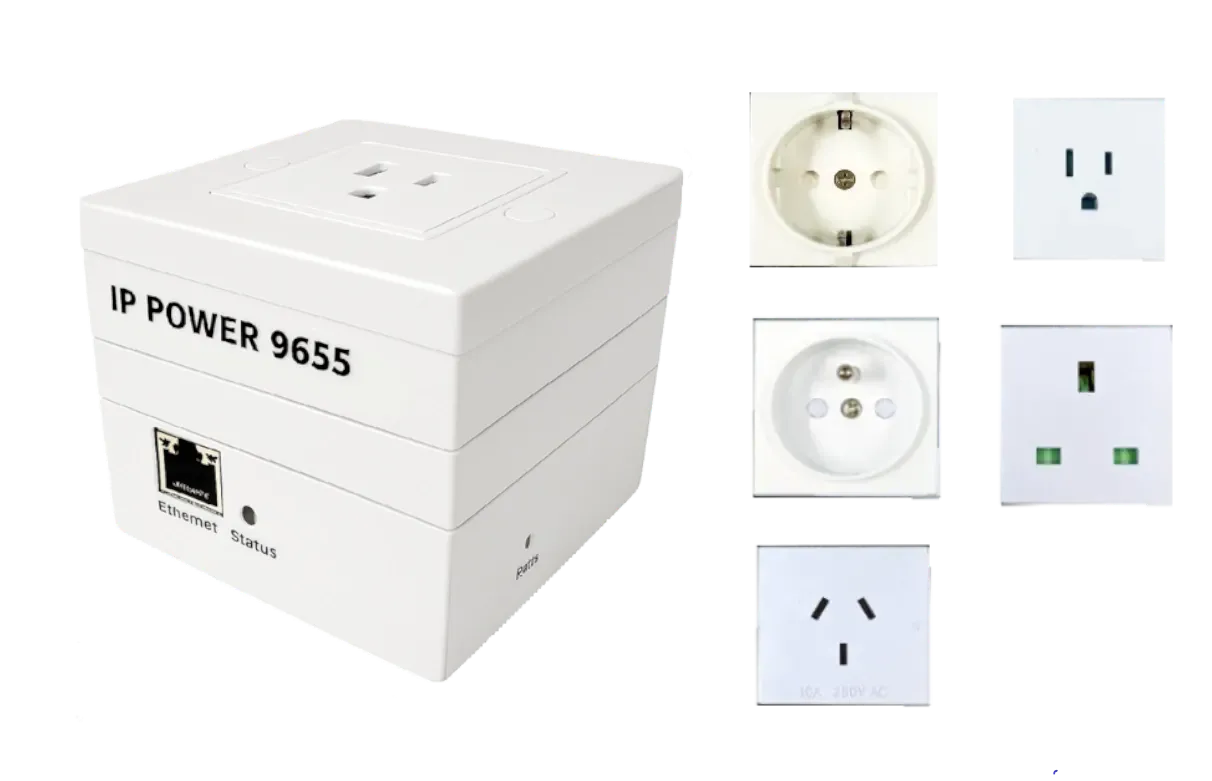

9655

  • 1 Country type outlet
  • AU,FR,GE,USA,UK..
  • 100~240VAC C14 in, 10A
  • 1xAmmeter
  • 1xThermometer
  • Active surge filter
  • (LxWxH) 86x86x80mm
  • 1xEthernet RJ45 & USB

  • https/http webserver,CGI
  • ipv4/ipv6/mDNS
  • MQTT,Telnet
  • SNMPv1&v2,Eventlog
  • quick power up
  • Opt Model wireless bridge

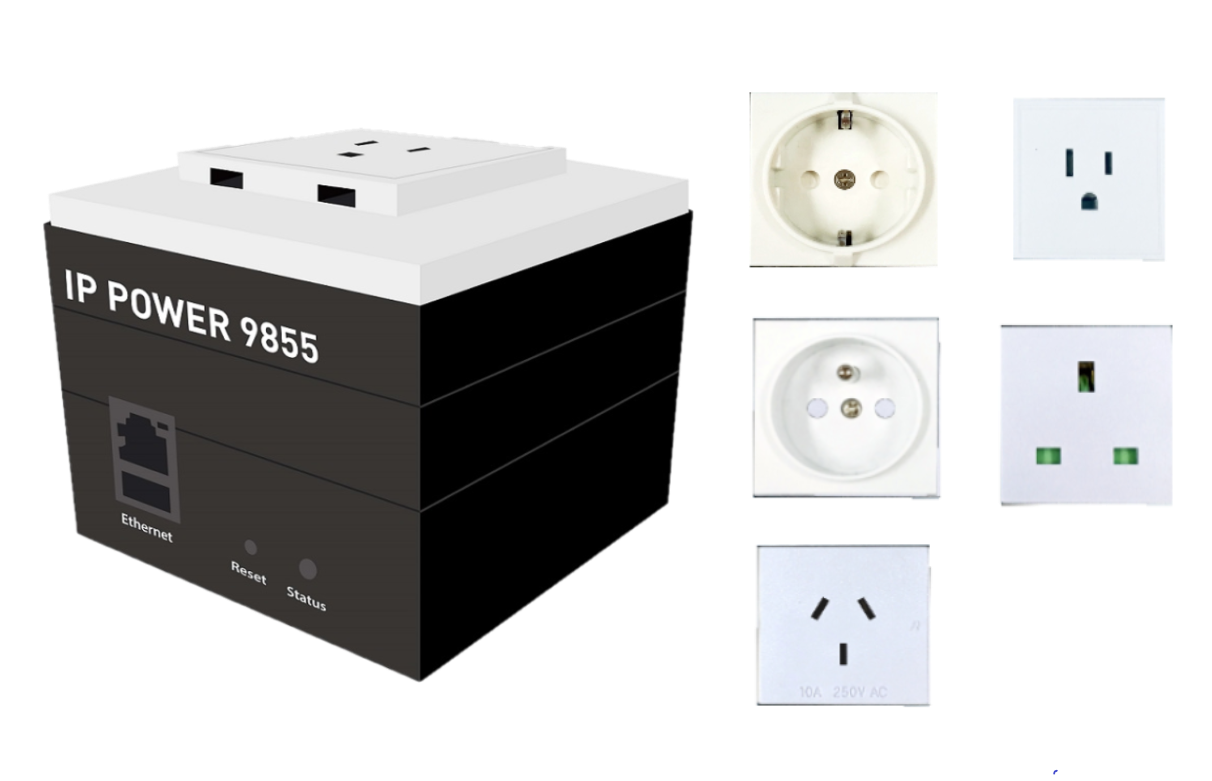

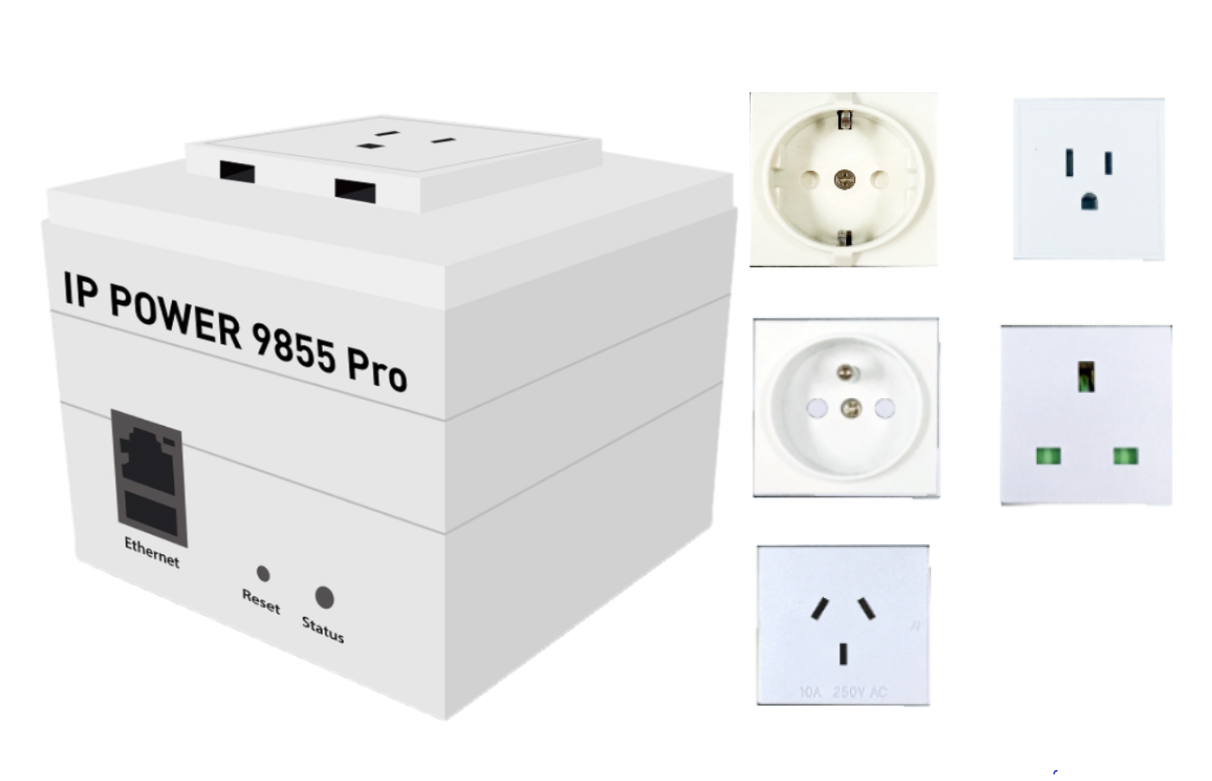

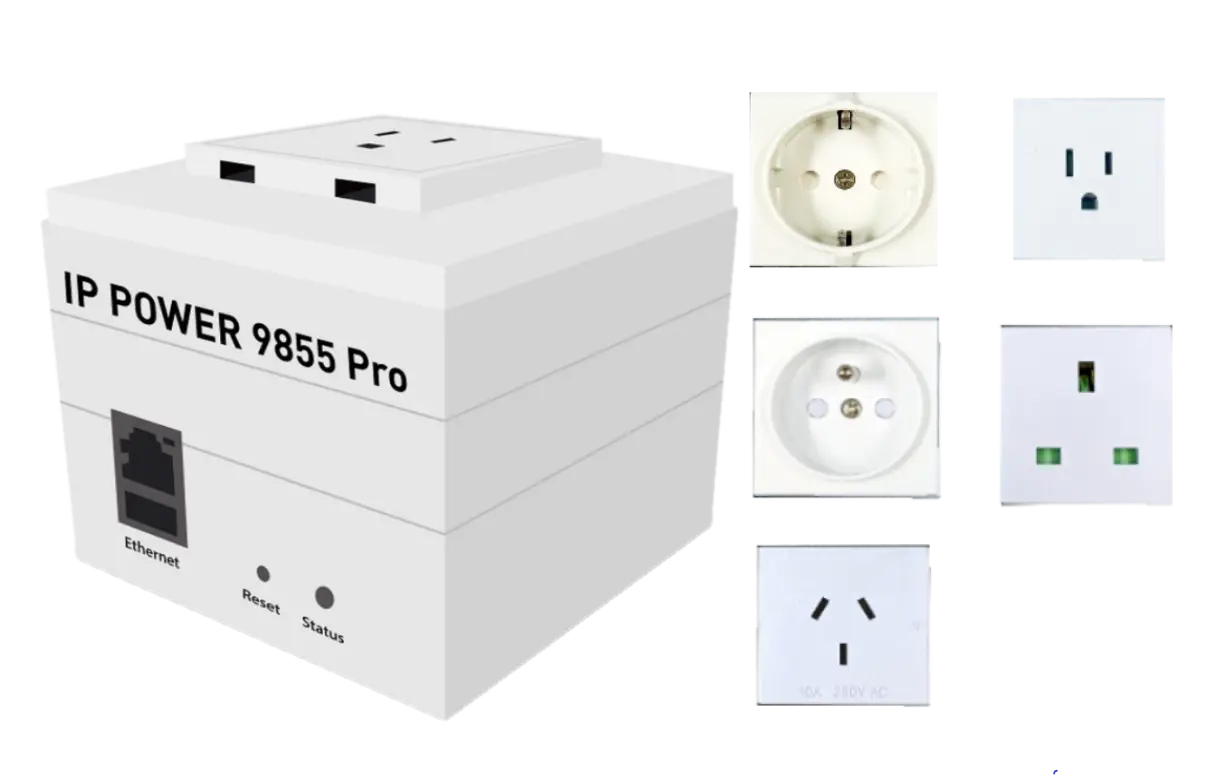

9855pro

  • 1 Country type outlet
  • AU,FR,GE,USA,UK..
  • 100~240VAC C14 in, 10A
  • internal 40A power switching
  • Prevent Start-Up 200A inrush
  • Prevent Motor voltage spikes
  • Active surge suppres
  • (LxWxH) 86x86x80mm
  • 1xEthernet RJ45 & USB
  • 1xVoltmter
  • 1xAmmeter
  • 1xThermometer

  • https/http webserver,CGI
  • ipv4/ipv6/mDNS
  • MQTT,Telnet,Modbus/tcp
  • SNMPv1v2v3,VPN Client
  • EAPOL(IEEE802.1x)
  • UPS management
  • Earthquake disaster manage.
  • Opt Model wireless bridge
  • Opt Model wireless

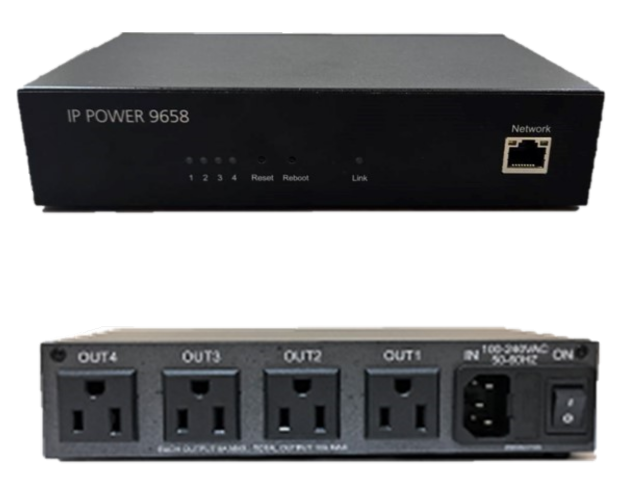

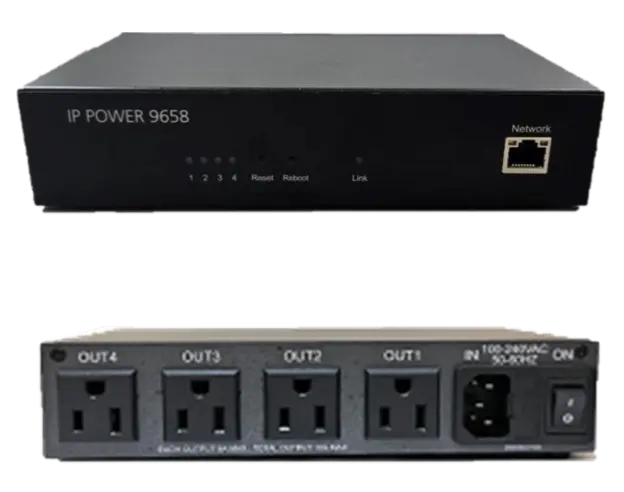

9658

  • 4x C13/NEMA5 outlet,10A
  • 100~240VAC C14 in,max 15A
  • (LxWxH)195x116x45mm
  • 1x Ethernet RJ45
  • 1xAmmeter
  • 1xThermometer
  • Active surge filter

  • https/http webserver,CGI
  • ipv4/ipv6/mDNS
  • MQTT,Telnet
  • SNMPv1
  • quick power up
  • (Optional) Model wireless
  • (Optional) Model with RS232
                                       

  Smart ATS PDU

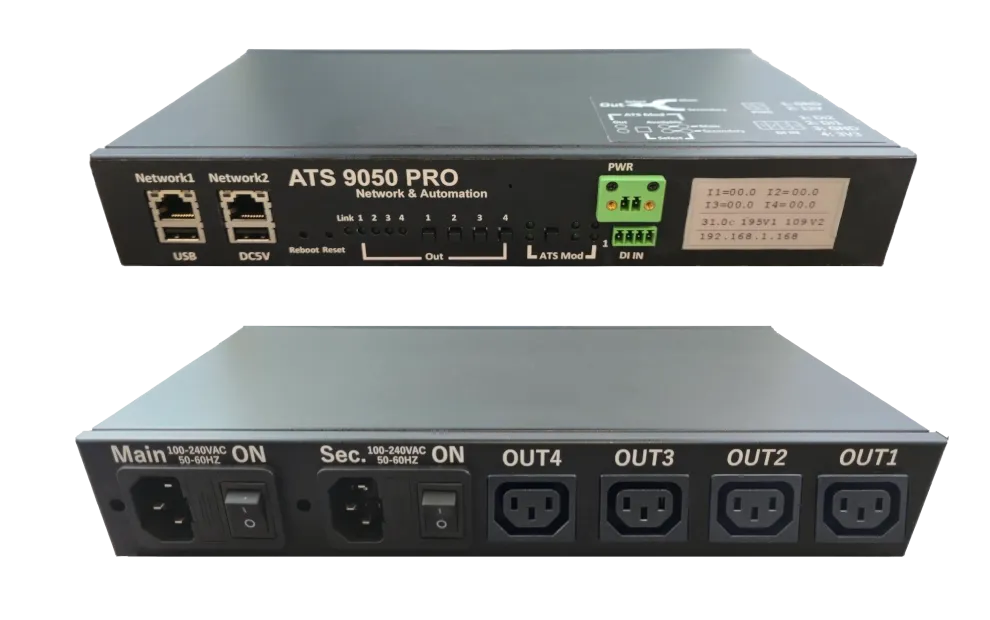

 ATS 9050 PRO

  • -Automatic Transfer Switch(ATS)
  • -Dual Redundant Power input
  • Active surge filter
  • 100~240VAC Input Max 15 A
  • 2x C14 inlet
  • 4x C13/NEMA5 outlet
  • E ink display monitor
  • 4x Ammeter
  • 2 Voltmeter
  • 1x Thermometer
  • 2x RJ45 Ethernet
  • 2x DI, 2x USB Port
  • DC 12V x 1 (Terminal)

  • -Earthquake event management

  • HTTP HTTPS Web Server CGI
  • IPv4 IPv6 mDNS
  • CGI/CNT/MQTT
  • SNMPv1 v2 v3
  • EAPOL(IEEE802.1x)
  • SSL
  • Mail and Voice notification
  • Option Model wireless

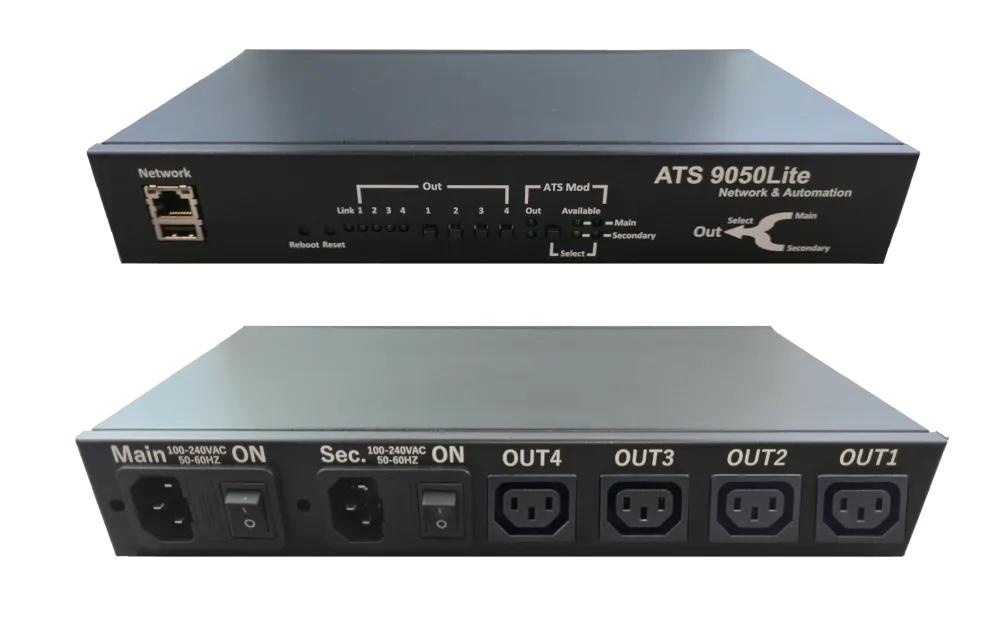

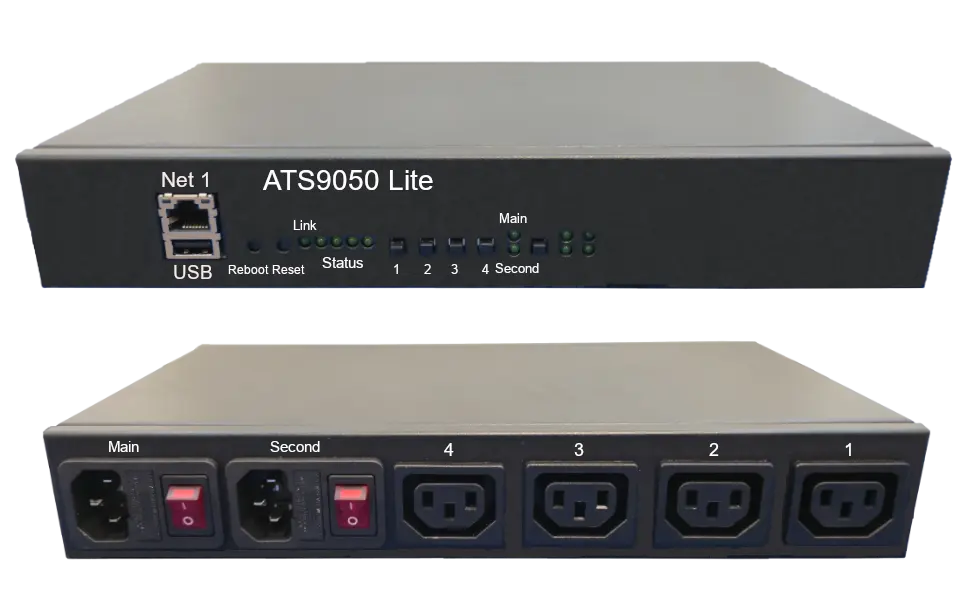

 ATS 9050Lite

  • -Automatic Transfer Switch(ATS)
  • -Dual Redundant Power input
  • Active surge filter
  • 100~240VAC Input Max 15 A
  • 2x C14 inlet
  • 4x C13/NEMA5 outlet
  • 1 total Ammeter
  • 2x Voltmeter
  • 1x Thermometer
  • 1x RJ45 Ethernet
  • 1x USB Port

  • HTTP HTTPS Web Server CGI
  • IPv4 IPv6 mDNS
  • CGI/CNT/MQTT
  • SNMPv1 v2 v3
  • EAPOL(IEEE802.1x)
  • SSL
  • Mail and Beeper notification
  • Option Model wireless

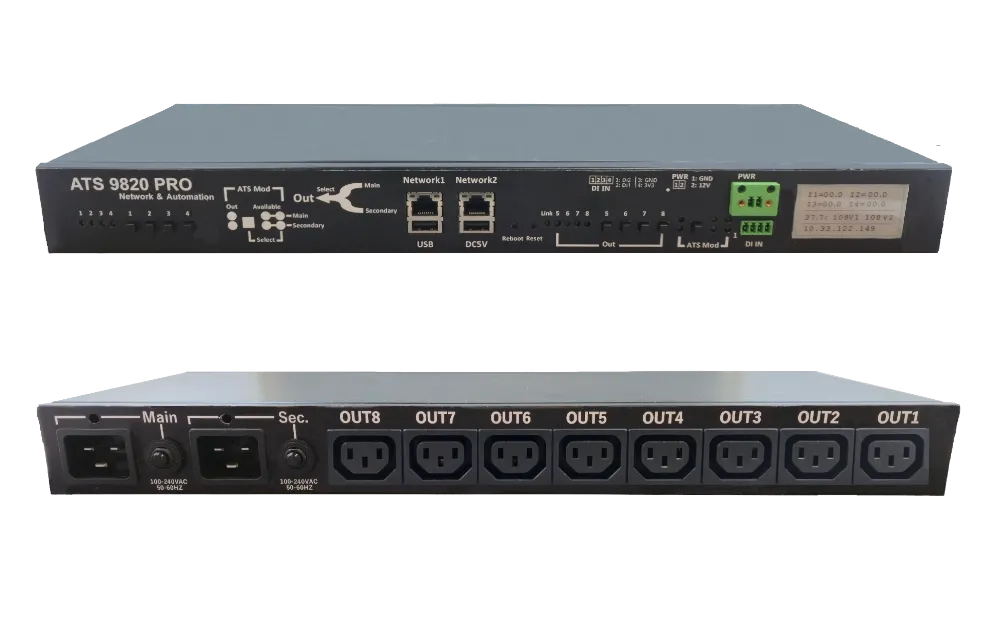

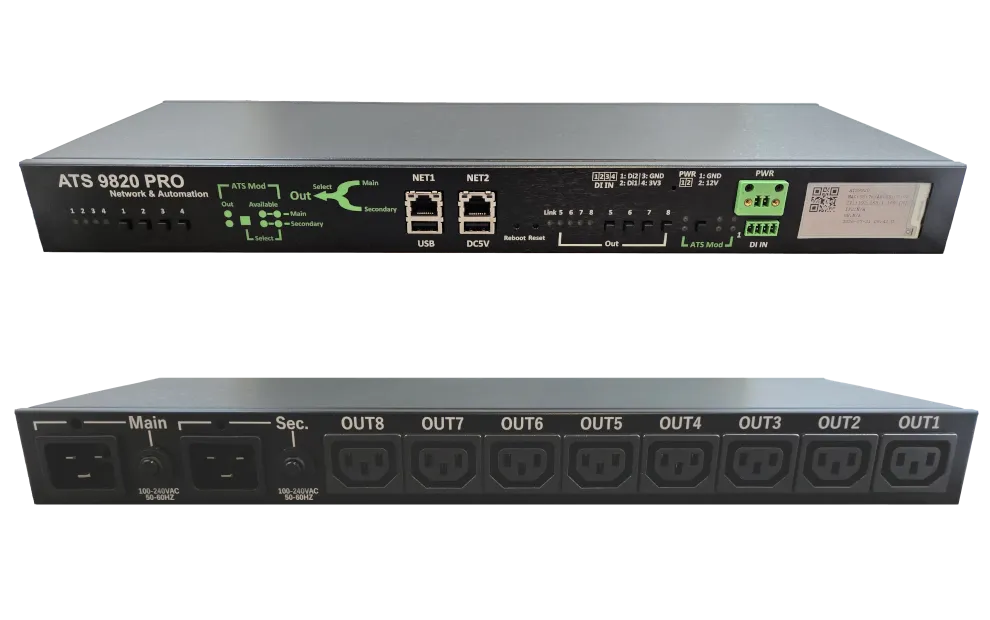

 ATS 9820 PRO

  • -Automatic Transfer Switch(ATS)
  • -Dual Redundant Power input
  • Active surge filter
  • 100~240VAC Input Max 15 A
  • 2x C20 inlet
  • 8x C13/NEMA5 outlet
  • 1U-rack size
  • E Ink display monitor
  • 8x Ammeter
  • 2x Voltmeter
  • 1x Thermometer
  • 2x RJ45 Ethernet
  • 2x DI, 2x USB Port
  • DC 12V x 1 (Terminal)

  • -Earthquake event management

  • HTTP HTTPS Web Server CGI
  • IPv4 IPv6 mDNS
  • CGI/CNT/MQTT
  • SNMPv1 v2 v3
  • EAPOL(IEEE802.1x)
  • SSL
  • Mail and Voice notification
  • Option Model wireless
                                      

News & Events

  1. 2026:
  2. Nov.(1) Released the new 8 ports- ATS 9820 PORO. With ATS power and Earthquake EEW system.
  3.  (2) Released IPEdit 1.2.8.4 Version for Windows, support ATS 9820,9050 series, and dual connection scanning support
  4. Feb. AVIOSYS cooperate with PWAVER inc for integrate it's ATS 9050 PRO and ATS 9820 PRO's Earthquake system.
  1. 2025:
  2. Nov.(1) IP Power 9658 model now offers an optional RS232 interface.
  3.  (2) Released IP Power intergrate in Home Assistant manual Ver.1.3
  4. Oct. Released IPEdit 1.2.8.3 Version for Windows.
  5. July. The updated for all-new redesigned IP Power App for iOS is now available! Click the link to see more information: Click me!

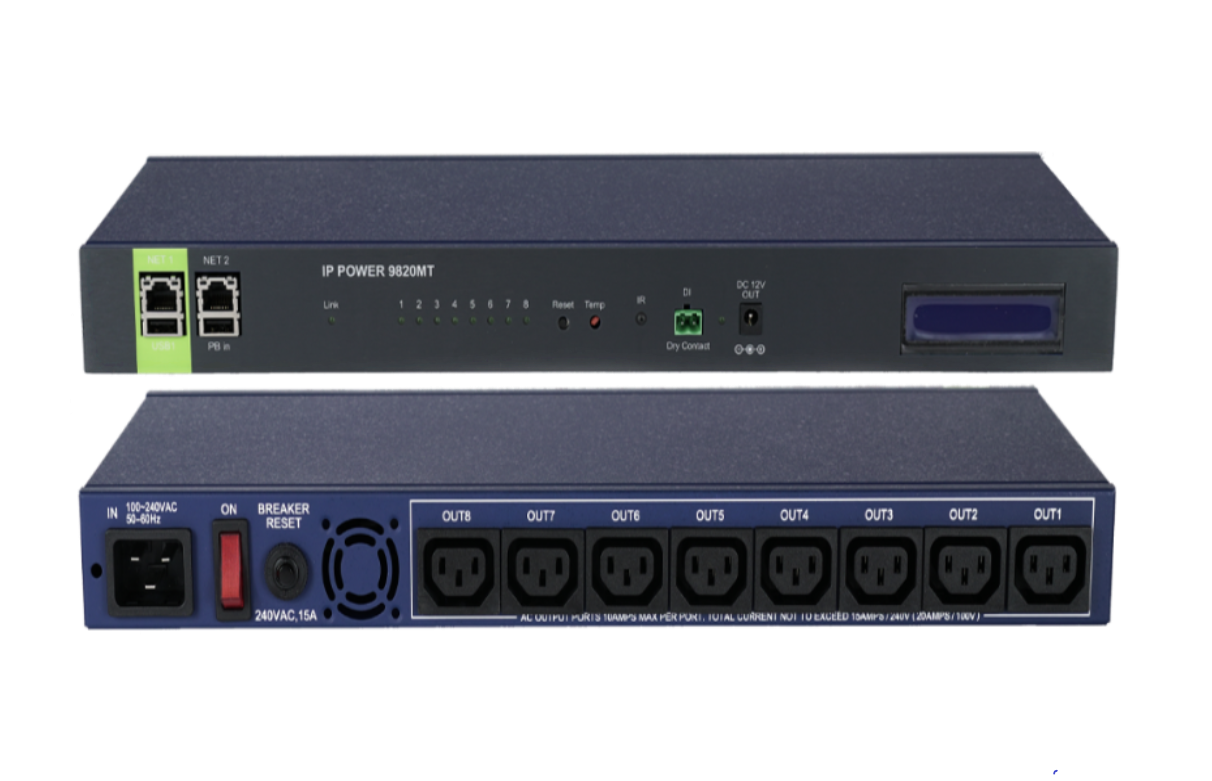

  6. May. IP Power 9828-P, IP9850, IP9858MT and IP9820MT now support mDNS function. To see more information, please move to the device webapge or online CD download the latest update manual.
  7. Apr. Released IP Power intergrate in Home Assistant and openHAB manual new version!
  8. Mar. IP Power 9855 series releae new function - Earthquake Management. Click the link to know how it works: Click me!
  1. 2024:
  2. Nov.(1) Released the new 1 ports IP Power 9655
  3.  (2) Released IP Power intergrate in Home Assistant manual Ver.1.1
  4. July. Released the new 4 ports IP Power PDU 9658
  5. June. IP Power now support integrate with openHAB!
  6. Apr. IP Power Center-92,98 series new version released!
  7. Mar. IP Power now support integrate with Home Assistant!
  1. 2023:
  2. Dec. QR code function for 9855 series released!
  3. Oct. Released IPEdit 1.2.8.1 Version for Windows
  4. June. Released 9855 series New Version: Ver.1.10, support IPv6 and Bonjour function
  5. Feb. Released the new 1 ports IP Power PDU 9855 and 9855 PRO
  1. 2022:
  2. Dec. Released the new 2 ports IP Power PDU 9828-P
