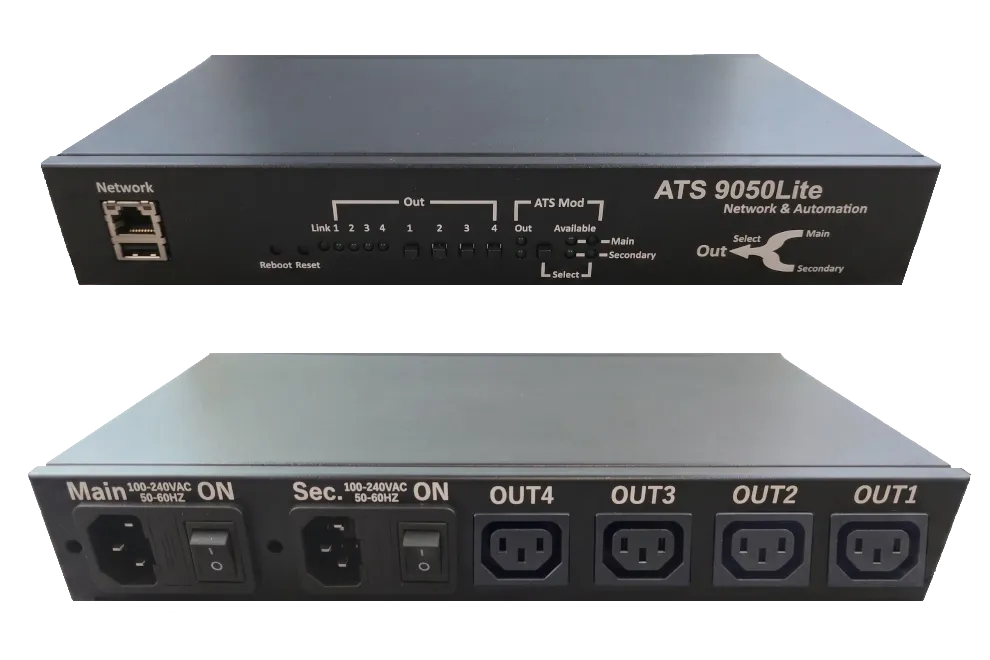

– ATS 9050Lite
The ATS 9050Lite PDU is a 4-outlet switchable Automatic Transfer Switch (ATS) Power Distribution Unit (PDU) that delivers 100–240 VAC output.
Its dual power cords can be connected to two independent power sources, providing redundancy for devices that have a single power cord.
If the voltage of the primary power source exceeds the acceptable range or a failure occurs, the PDU automatically switches to the backup power source to ensure continuous operation.
Once the primary power returns to normal, the PDU automatically switches back to the primary source.
The PDU also supports an external battery terminal block to maintain PDU operations and send alerts even during a total power blackout.
The ATS 9050Lite PDU allows remote manual control of critical equipment with just a few clicks via smartphone or web browser. Commands can also be set up by scanning a QR code.
Faulty devices can be stopped by cutting power to specific outlets and remotely rebooted, significantly saving time and costs compared to dispatching technicians to diagnose problems onsite.
Administrators can monitor the PDU’s total power usage over the Internet, gaining comprehensive insight into the power consumption of all connected devices.
Overload event alerts can be configured to notify administrators by email, enabling rapid response to emergencies and minimizing risks.
– Features
• Support Cloud Connect : AWS IOT, Custom setting suport.
• Support SSH.
| HTTP API Command your IPPower through a friendly web interface, via a curl, from a command line, or from your own application via an HTTP get post API(CGI). |
Automatic Transfer Switch (ATS) is a safety mechanism to transfers backup power when it detects a power failure. |
||
|
Email Notice If enable SMTP function, If the status changed,IPPower will send notifications by email |
SYSLOG All events will be recorded on the website and forwarded to the syslog host server. |
||
| Wake ON LAN IPPower allows you to remotely wake up the network devices from shutdown via the Wake on LAN (WOL) service. You can enable IPPower to the WOL service and wake them up via the MAC address list. Before applying the WOL service, make sure the target device supports WOL. |
if set mac or ip of the specified pc, also run a windows's resident AP the PC can be powered off safety by website or trigger by ping/scheduler event |
||
| Ping function provides 2 IP with with AND OR logic combination. When the specified IP does not respond to PING, IPPower will perform a user-defined power action. The action can be select outlet on/off | Schedule Task Scheduler allows you to schedule and run actions at pre-defined time table. The time tables which are selected from everyday,week or once. When the time up IPPower perform a user-defined power action. The action can be select outlet on/off. | ||
|
It can show the AC current status and Out of range events will trigger outlet on/off,email and alarm buzzer |
Measure power voltage preventing overloads and checking power failures. | ||
|
Remote Control If enable CNT function, please download Andriod and ios APP and Nod-red software package to control and monitor |
QR Code Reader You can scan the QR code USB reader, after you scan it through any scanner, you can do the basic control I/O control of the device |
||
– Specification
| Dimensions | 288 * 161 * 45mm( L / W / H ) |
| Power input | 100~240VAC C14 x2 (with Fuse protection) |
| Maximum current | 10A |
| Maximum current total 4 outlets | 15A 110V 10A 220V |
| Interface | LED indicator lights HW Reset button External battery terminal block Four bottons control |
| Operating temperature | 0~50°C |
| Network | RJ-45 10/100Mb Ethernet Port x1 Wireless connection (optional) |
| USB |
USB 2.0 Port x 1 Power bank UPS |
| Outlets | ATS 9050Lite-T : NEMA ATS 9050Lite-S : IEC320 |

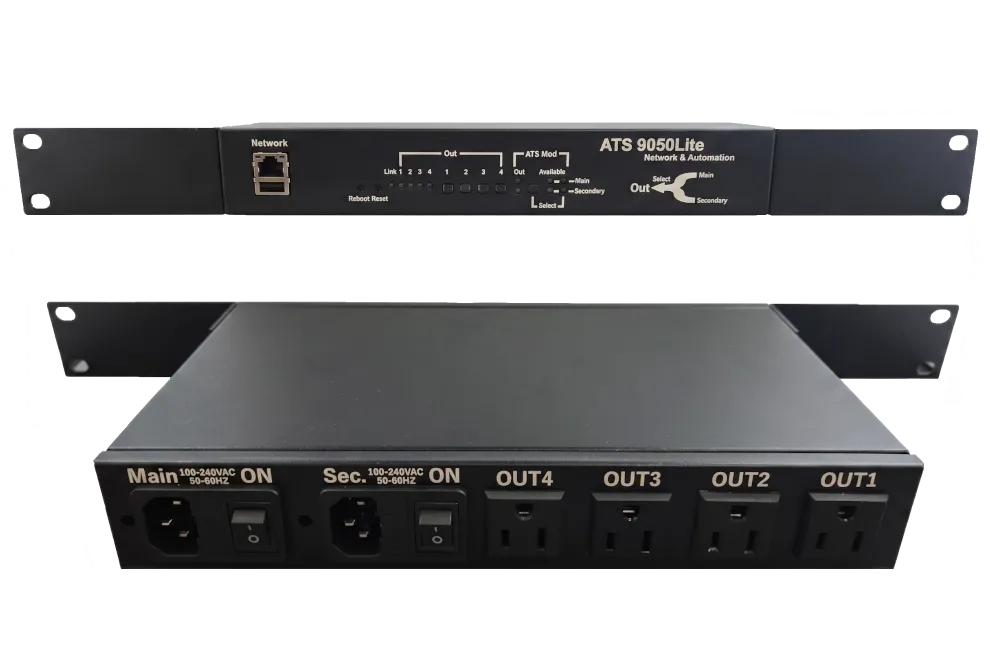

| Others | Support accessory for 1U mounting in rack ears |
